Acoustic Estimator

Facade Noise Reduction Estimator — Estimate sound transmission loss through glass systems

1
Noise Condition
Enter the outside noise level at the facade
dB
2
Glass System Type
Select the type of glass configuration

Note: This is a conceptual acoustic estimation tool. Final performance must be verified by lab-tested STC data.

No Analysis Yet

Fill in the noise conditions and glass specifications, then click "Calculate" to estimate acoustic performance.

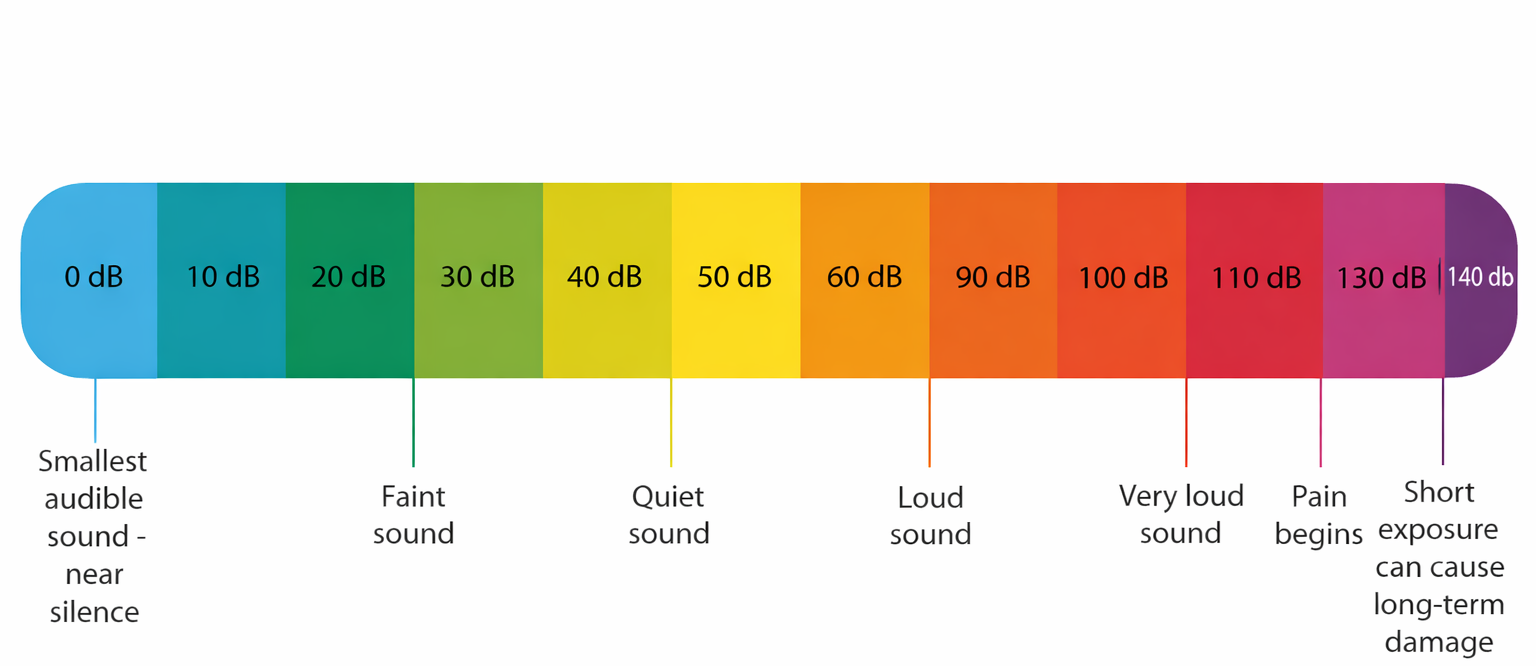

Noise Level Scale
Noise level scale from 0 dB (near silence) to 140 dB (long-term damage)
About This Calculator

This calculator estimates the Sound Transmission Class (STC) of glass facade systems using the mass law approximation. It provides an indicative estimate of noise reduction performance.

R (Transmission Loss) represents the sound reduction in decibels achieved by the glass system. The estimated inside noise is calculated as:

Inside dB = Outside dB − R

Glass surface density (M) is calculated as: thickness (mm) × 2.5 kg/m². Results are approximate — actual performance may vary based on installation quality, frame type, seals, and other factors.

PVB Interlayer Reference

0.38 mm

+4 dB

0.76 mm

+5.5 dB

1.14 mm

+6 dB

1.52 mm

+7 dB
