AMV NC01 I AMV Engineering Industrial Equipment AMV Engineering

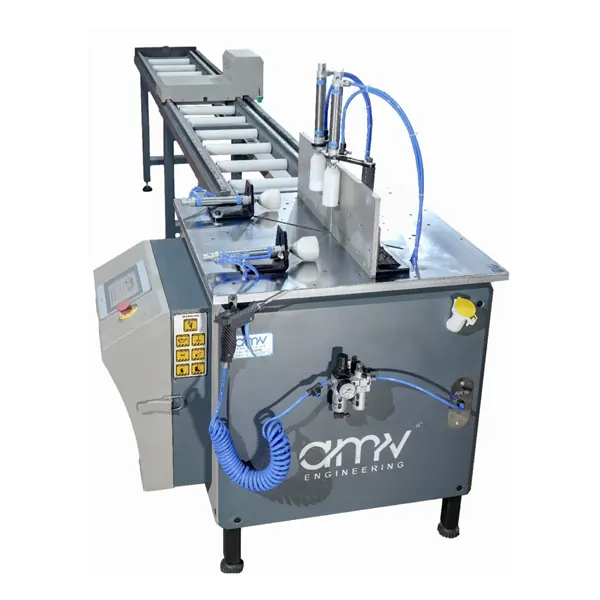

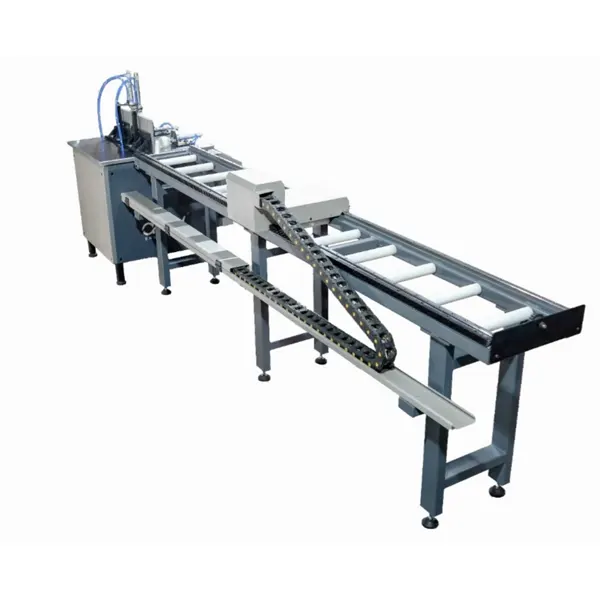

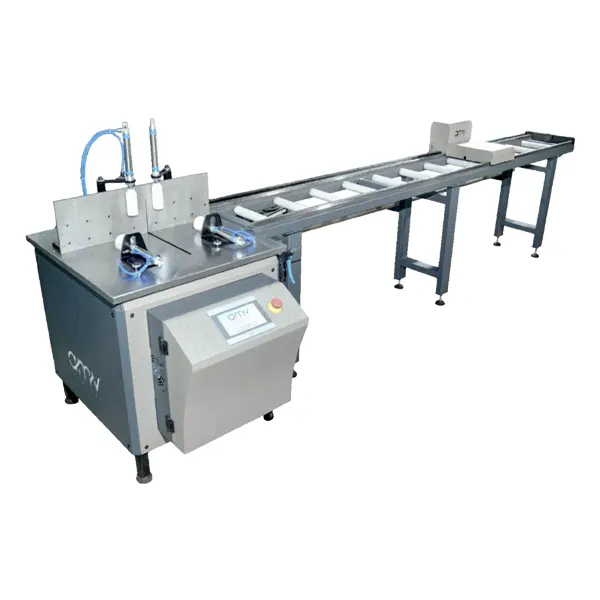

Fully Automatic Single Head Aluminum Profile Cutting Machine With DRO Unit Designed for UPVC and aluminum profiles cutting.
Product manufacturer
AMV EngineeringProduct Category
Industrial Equipment
AMV Engineering Industrial Equipment AMV NC01 I AMV Engineering
Fully Automatic Single Head Aluminum Profile Cutting Machine With DRO Unit Designed for UPVC and aluminum profiles cutting.
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
More Products from
AMV Engineering
AMV ASC01 I AMV Engineering
AMV Engineering
₹1,85,000
AMV ASC02 I AMV Engineering
AMV Engineering
₹2,20,000
AMV ASC03 I AMV Engineering
AMV Engineering
₹1,65,000
AMV ASC04 I AMV Engineering
AMV Engineering
₹1,80,000
AMV CR01 I AMV Engineering
AMV Engineering
₹95,000
AMV HMM01 I AMV Engineering
AMV Engineering
₹5,50,000
Services & Tools
Comprehensive services and tools to support your Industrial Equipment project needs
Product Comparison
Complete Technical Specifications for AMV Engineering AMV NC01 I AMV Engineering
| Property | Value | Unit |
|---|---|---|
| Model Name/Number | AMVNC01 | — |
| Max Sheet Width | — | — |
| Automation Grade | — | — |
| Application | — | — |
| Control Type | — | — |
| Material | — | — |
| Machine Type | — | — |
| Capacity | — | — |
| Ton | — | — |
| Cutting Load | — | — |
| Bending Length | — | mm |
| Bending Force | — | KN |
| Depth Of Throat | — | mm |
| Color | — | — |
| Frequency | — | Hertz |
| Packaging Type | — | — |
| Working Pressure | — | — |
| Max Bending Angle (Degrees) | — | — |
| Standard Stroke | — | — |
| Gauge | — | — |
| Features | Cutting range 45° & 90°, 400 mm carbide saw blade, Fully automatic operation, DRO measurement system, Pneumatic clamping system, Automatic lubrication system, Heavy-duty industrial design, Suitable for UPVC & aluminium profiles, Smooth and mirror finish cutting, PLC based automation system, Digital auto cutting adjustment, Linear motion rail system, High production capacit | — |
| Power Supply | 220-440 V, 1 ph Or 3 ph, 50-60 Hz | — |
| Spindle Speed | 4200 | rpm |
| Stepper Motor Capacity | 85 | Kgs |
| Atomation System Brand | Delta | — |
| Total Kw | — | kW |
| Air Pressure | 5-8 | bar |
| Air Consumption | 41 | lt/min |
| Machine Height | 1020 | mm |
| Machine Depth | 1000 | mm |
| Machine Width | 750 | Kg (Approx) |
| DRO Length | 3000 | mm |
| Machine Weight | 280 | Kg (Approx) |
| Saw Outside Diameter | Ø400 | — |
| Inside Diameter of Saw | Ø30 | — |
| Saw Thickness | 3.5 | mm |
| Number of Teeth | 120 | — |
| Production Capacity | 1500 | Pcs Per Day(Approx) |
| Warranty | 6 Months | — |
| Country of Origin | India | — |
| Net weight | — | — |
| Max Bending Angle (Degrees) | — | Degree |
