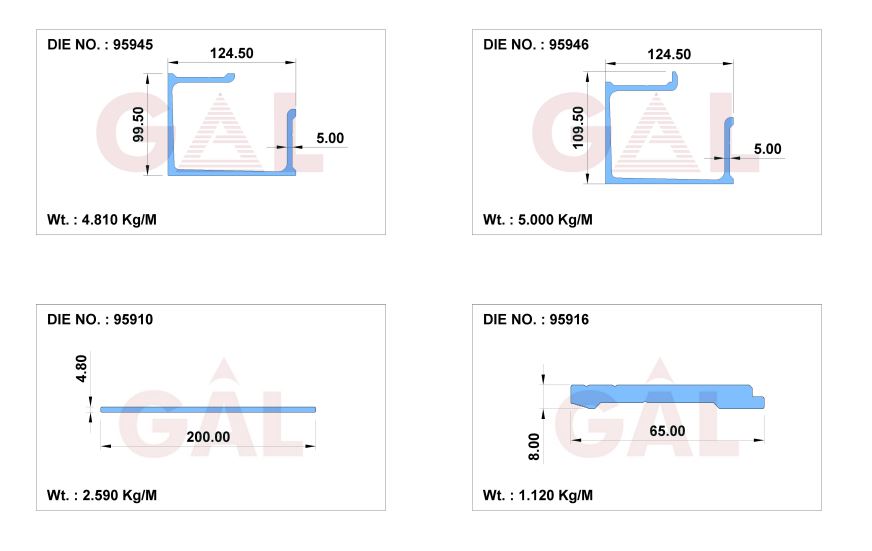

Die No. 95945 is a high-quality aluminium U / channel profile used for façade framing, curtain wall support, and structural building applications. It has dimensions of 124.50 mm width, 99.50 mm height, and 5.00 mm thickness, with a weight of 4.810 kg per meter, and is manufactured from premium architectural-grade aluminium suitable for anodizing and powder coating. Die No. 95946 is a heavy-duty U / channel aluminium profile designed for curtain wall mullions and high wind-load façade structures. The profile measures 124.50 mm in width, 109.50 mm in height, and 5.00 mm thickness, weighs 5.000 kg per meter, and is made from high-strength, corrosion-resistant aluminium for building and construction use. Die No. 95910 is an aluminium flat bar profile commonly used for brackets, stiffeners, and façade sub-structure support. It has a 200.00 mm width and 4.80 mm thickness, weighs 2.590 kg per meter, and is produced using high-quality aluminium suitable for structural and fabrication purposes. Die No. 95916 is a custom architectural façade cover profile used for cladding systems, trims, and finishing elements in building projects. It has dimensions of 65.00 mm width and 8.00 mm height, a weight of 1.120 kg per meter, and is manufactured from premium-grade aluminium with excellent surface finish and durability.
