Gal Aluminium extrusion pvt. ltd. I Building & Construction Sections Aluminum Extrusion GAL Aluminium Extrusion Pvt. Ltd

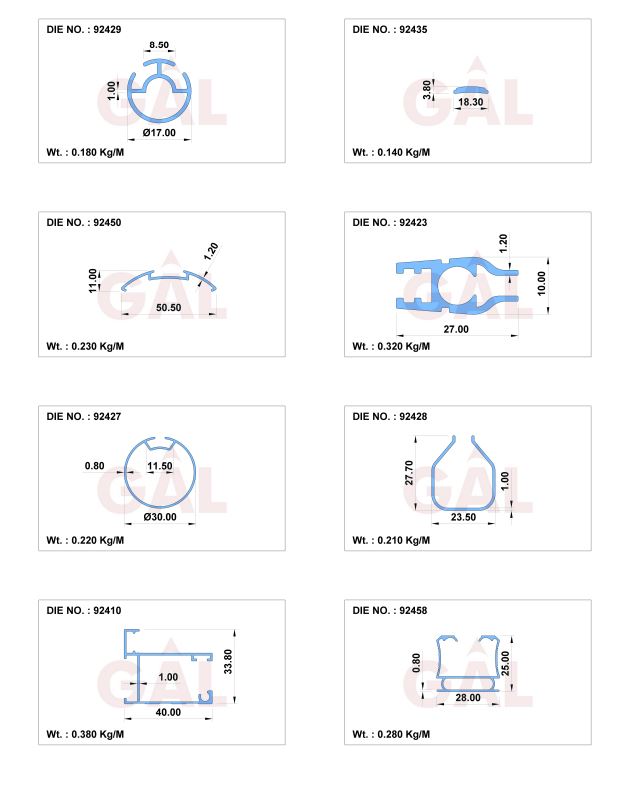

Die No. 92429: Small circular aluminium profile with 17.00 mm diameter, 1.00 mm thickness, 8.50 mm top opening, and 0.180 kg/m weight, manufactured from high-quality aluminium, suitable for architectural detailing, glazing accessories, and light façade applications. Die No. 92435: Compact aluminium architectural profile with 18.30 mm width, 3.80 mm height, and 0.140 kg/m weight, produced using premium-grade aluminium, ideal for façade trims and light construction accessories. Die No. 92450: Curved aluminium profile with 50.50 mm length, 11.00 mm height, 1.20 mm thickness, and 0.230 kg/m weight, made from high-quality aluminium, suitable for decorative architectural elements and façade detailing. Die No. 92423: Small hollow aluminium profile with 27.00 mm width, 10.00 mm height, 1.20 mm thickness, and 0.320 kg/m weight, manufactured from premium-quality aluminium, ideal for glazing systems and façade accessories. Die No. 92427: Circular aluminium profile with 30.00 mm diameter, 0.80 mm thickness, 11.50 mm internal feature, and 0.220 kg/m weight, produced using high-quality aluminium, suitable for architectural fittings and façade components. Die No. 92428: Small tapered aluminium profile with 23.50 mm width, 27.70 mm height, 1.00 mm thickness, and 0.210 kg/m weight, made from premium-grade aluminium, suitable for decorative trims and light architectural applications. Die No. 92410: Compact aluminium channel profile with 40.00 mm width, 33.80 mm height, 1.00 mm thickness, and 0.380 kg/m weight, manufactured from high-quality aluminium, ideal for glazing supports and façade fittings. Die No. 92458: Small aluminium architectural profile with 28.00 mm width, 32.50 mm height, 0.80 mm thickness, and 0.280 kg/m weight, produced from premium-quality aluminium, suitable for façade accessories and decorative construction elements.
