Gal Aluminium extrusion pvt. ltd. I Building & Construction Sections Aluminum Extrusion GAL Aluminium Extrusion Pvt. Ltd

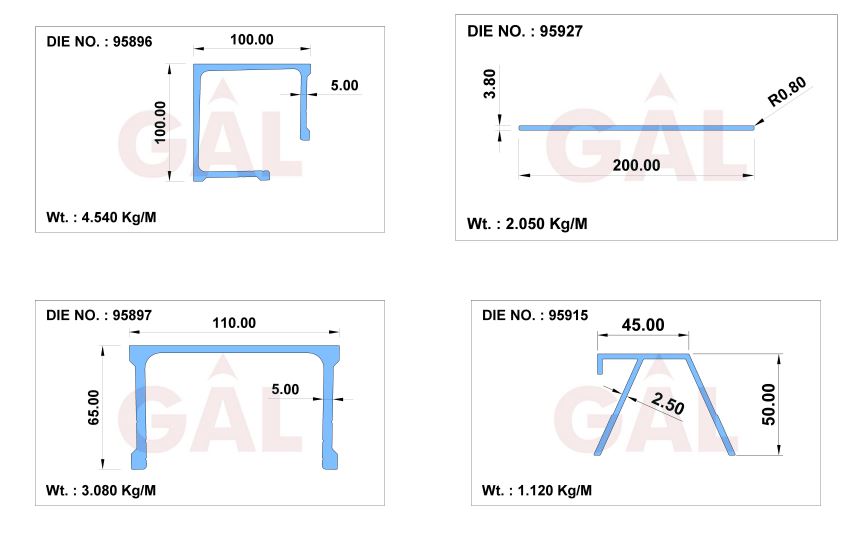

Die No. 95896: L-shaped aluminium structural profile with 100 × 100 mm dimensions, 5.00 mm thickness, and 4.540 kg/m weight, manufactured from high-quality aluminium, suitable for building construction, façade framing, and load-bearing structural applications. Die No. 95927: Flat aluminium strip with 200.00 mm width, 3.80 mm thickness, R0.80 edge radius, and 2.050 kg/m weight, made from premium-grade aluminium, used for construction panels, façade elements, and architectural reinforcement. Die No. 95897: U-shaped aluminium profile with 110.00 mm width, 65.00 mm height, 5.00 mm thickness, and 3.080 kg/m weight, produced using high-strength aluminium, ideal for façade framing, building structures, and architectural support systems. Die No. 95915: Lightweight architectural aluminium profile with 45.00 mm top width, 50.00 mm height, 2.50 mm thickness, and 1.120 kg/m weight, manufactured from high-quality aluminium, suitable for façade trims, glazing supports, and light construction applications.
