GS-HD Top-Hung Arm – Type P Hinges Giesse

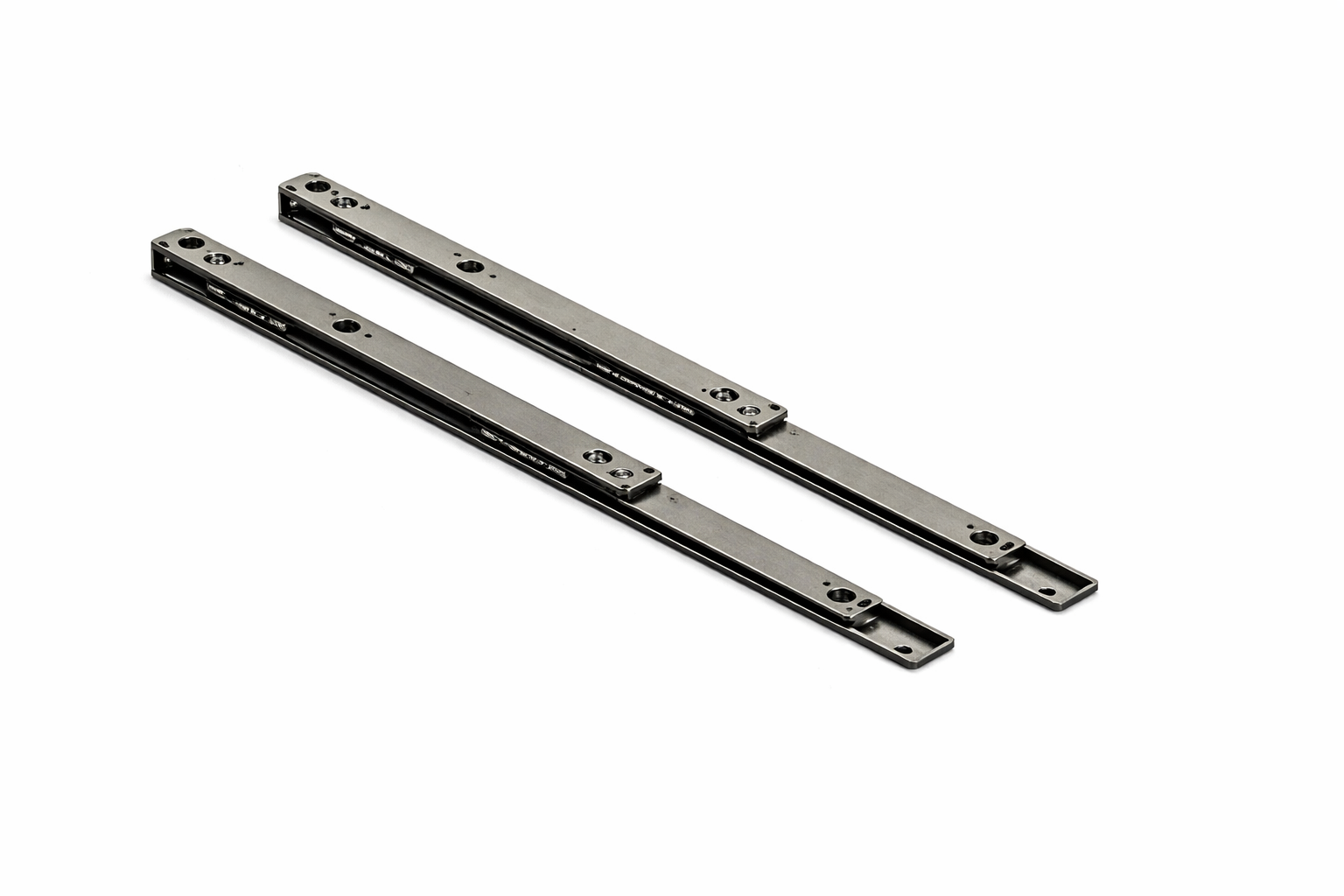

GS-HD Type P top-hung arms are heavy-duty friction arms designed for large and high-weight windows. The arms can be friction-adjusted using the grub screw on the slider. Depending on the model, different maximum sash opening angles can be selected. Can be combined with height adjustment device Art. 02006K for precision installation. Suitable for aluminium systems with 23 mm groove and 16.5 ± 0.5 mm sash-frame distance (standard models). Supplied in pairs.
Product manufacturer
GiesseProduct Category
Hinges
Giesse Hinges GS-HD Top-Hung Arm – Type P
GS-HD Type P top-hung arms are heavy-duty friction arms designed for large and high-weight windows. The arms can be friction-adjusted using the grub screw on the slider. Depending on the model, different maximum sash opening angles can be selected. Can be combined with height adjustment device Art. 02006K for precision installation. Suitable for aluminium systems with 23 mm groove and 16.5 ± 0.5 mm sash-frame distance (standard models). Supplied in pairs.
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
More Products from
Giesse
GS-HD Side-hung Arm – Type A
Giesse
₹1,600
GS-HD Side-hung Arm – Type M
Giesse
₹1,350
GS-HD Side-hung Arm – Type C
Giesse
₹2,500
GS-HD Type C Plus Super – Self-Balancing Side-hung Arm
Giesse
₹3,100
GS-HD Type TS – Multi-Position Side & Top Hung Arm
Giesse
₹2,800
GS-HD Limitation Arm – Side Hung (Friz / With Lock)
Giesse
₹1,050
Services & Tools
Comprehensive services and tools to support your Hinges project needs
Product Comparison
Complete Technical Specifications for Giesse GS-HD Top-Hung Arm – Type P
| Property | Value | Unit |
|---|---|---|
| Code | 08534N, 08535N, 08536N, 08537N, 08538N, 08539N, 08540N, 08541N, 08542N, 08348, 08309, 08351 | — |
| Bag Width | 23 | mm |
| Sash Frame Distance | 15.5 ± 0.5, 16.5 ± 0.5, GACS | mm |
| Arm Length | 259, 261, 317, 353, 414, 458, 511, 556, 567, 602, 690, 707, 711 | mm |
| Maximum Sash Opening angle | 10, 15, 20, 25, 30, 35, 45, 50 | ° |
| Max Height | 600, 700, 800, 1000, 1200, 1400, 1500, 1600, 1700, 1800, 2000, 2500 | mm |
| Max Width | 1200, 1300, 1400, 1500, 1700 | mm |
| Max Weight | 25, 50, 60, 69, 80, 88, 100, 102, 135, 137, 139, 155, 180 | Kg |
| Application | Top-hung windows (medium to heavy duty) | — |
| Type of One-Way Stroke | — | mm |
| Rod Length | — | mm |
