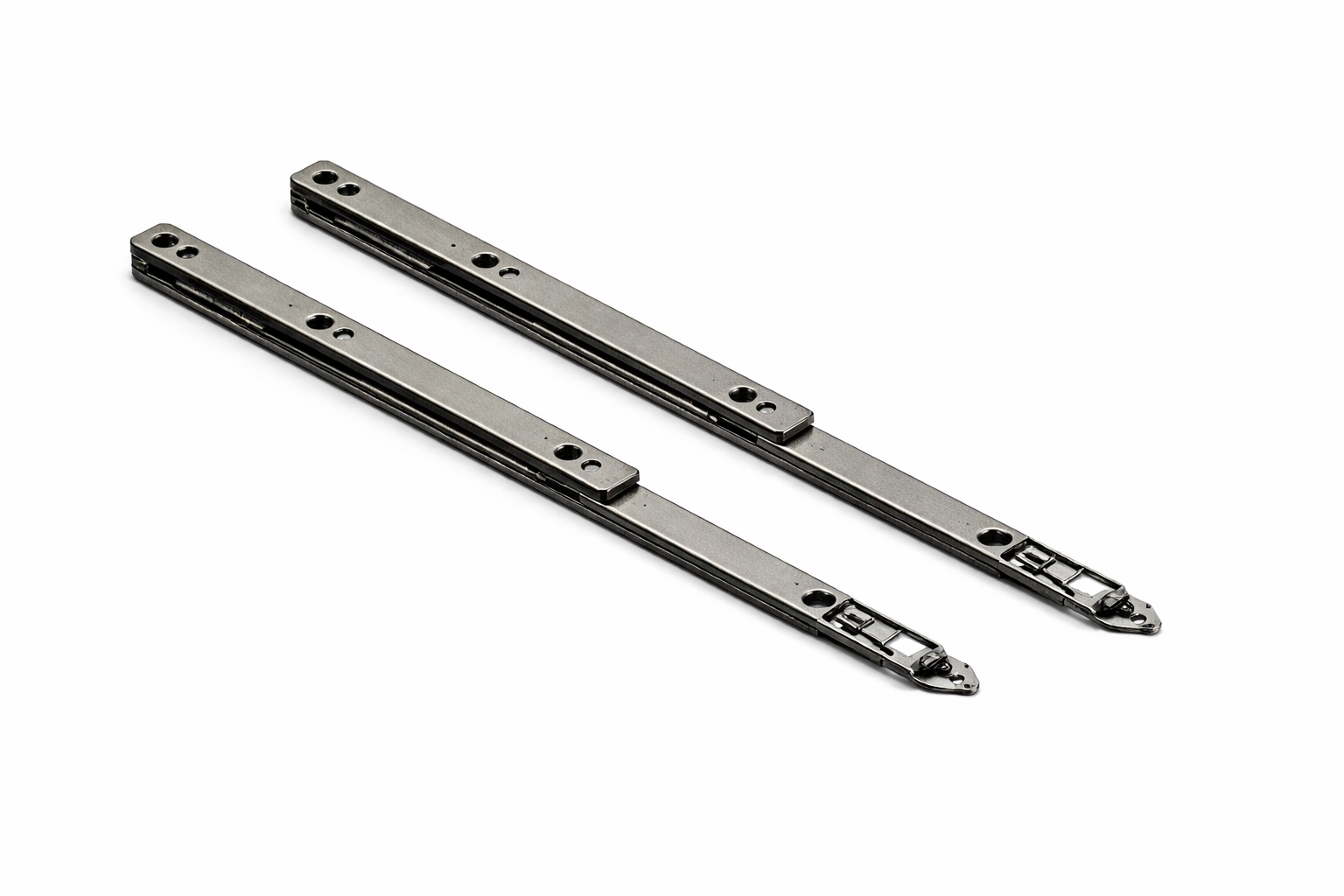

Giesse GS-HD Top-Hung Arm – Type P Super

Product manufacturer

Product Category

Hinges

Giesse Hinges GS-HD Top-Hung Arm – Type P Super

GS-HD Type P Super arms are designed for medium to large size and high-weight top-hung windows. These heavy-duty friction arms provide controlled opening angles and high load-bearing capacity, making them suitable for façade and large aluminium window systems. Suitable for 23 mm groove systems with 16.5 ± 0.5 mm sash-frame distance. Supplied in pairs.

Code: 08886, 08887, 08888, 08889, 08890, 08891, 08892, 08893, 08894
Bag Width: 23 mm
Sash Frame Distance: 16.5 ± 0.5 mm
Arm Length: 322, 378, 414, 475, 519, 572, 617, 663, 768 mm

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

More Products fromGiesse

GS-HD Side-hung Arm – Type A

Giesse

₹1,600

GS-HD Side-hung Arm – Type M

Giesse

₹1,350

GS-HD Side-hung Arm – Type C

Giesse

₹2,500

GS-HD Type C Plus Super – Self-Balancing Side-hung Arm

Giesse

₹3,100

GS-HD Type TS – Multi-Position Side & Top Hung Arm

Giesse

₹2,800

GS-HD Limitation Arm – Side Hung (Friz / With Lock)

Giesse

₹1,050

Services & Tools

Comprehensive services and tools to support your Hinges project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Giesse GS-HD Top-Hung Arm – Type P Super

Property	Value	Unit
Code	08886, 08887, 08888, 08889, 08890, 08891, 08892, 08893, 08894	—
Bag Width	23	mm
Sash Frame Distance	16.5 ± 0.5	mm
Arm Length	322, 378, 414, 475, 519, 572, 617, 663, 768	mm
Maximum Sash Opening angle	10, 15, 20, 25, 30, 35	°
Max Height	700, 800, 1000, 1200, 1400, 1600, 1700, 1800, 2000	mm
Max Width	1200, 1300, 1400, 1500	mm
Max Weight	50, 60, 69.5, 88.5, 102, 135, 137, 139, 155	Kg
Application	Top-hung windows	—
Type of One-Way Stroke	—	mm
Rod Length	—	mm
