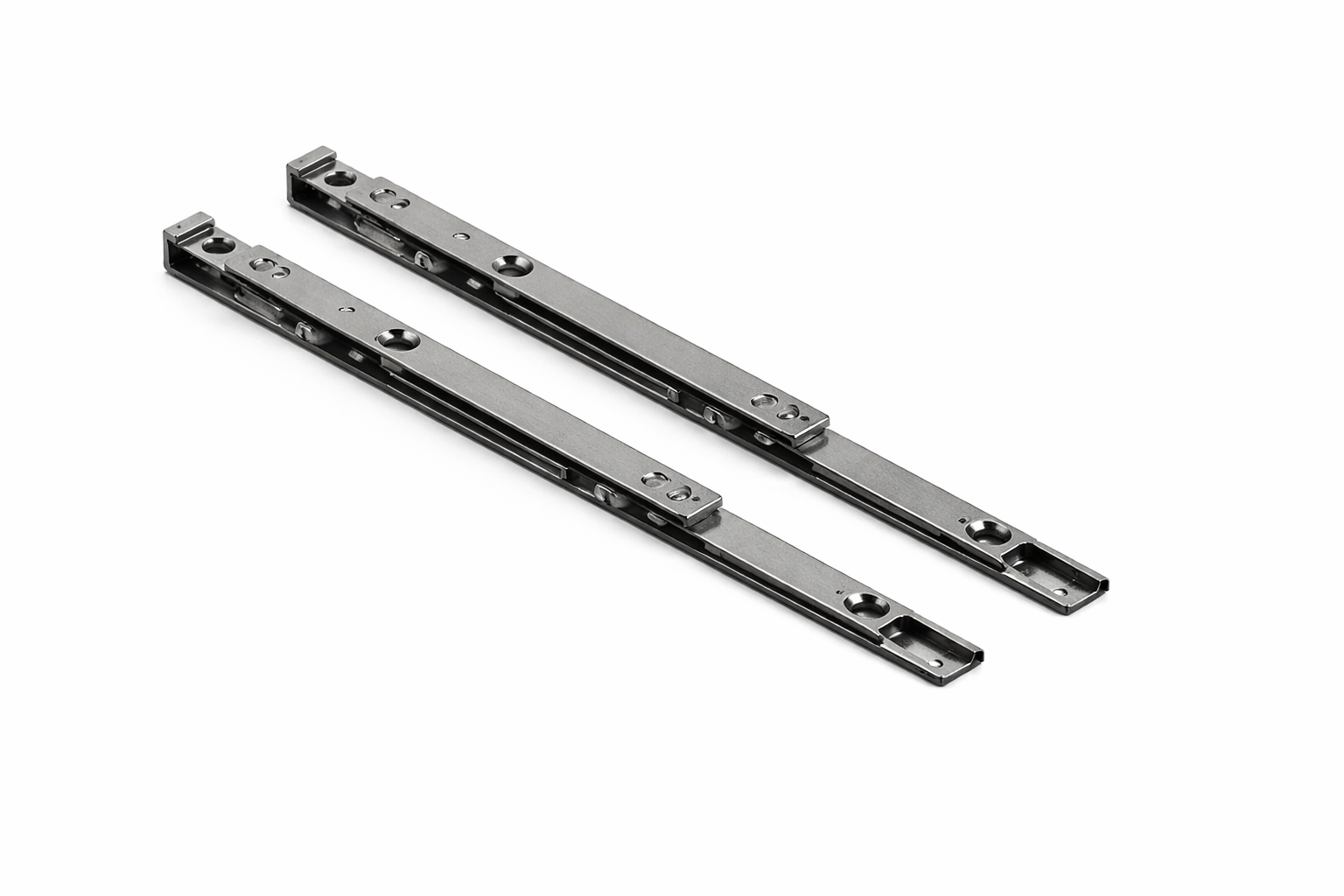

Giesse Hinges GS-HD Top-Hung Arms – Type A

GS-HD Type A top-hung arms are designed for small windows and skylights. Tested up to 30,000 operating cycles and supplied in pairs. Suitable for aluminium window systems with 18 mm groove. Ensures controlled opening angles and reliable sash support.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Hinges project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Giesse GS-HD Top-Hung Arms – Type A

PropertyValueUnit
Code08127N, 08128N, 08130N
Bag Width18mm
Sash Frame Distance15.5 ± 0.5mm
Arm Length261, 305, 407mm
Maximum Sash Opening angle84, 85, 87°
Max Height400, 550, 750mm
Max Width1200mm
Max Weight16, 18, 21Kg
ApplicationTop-hung windows, Skylights
Type of One-Way Strokemm
Rod Lengthmm
