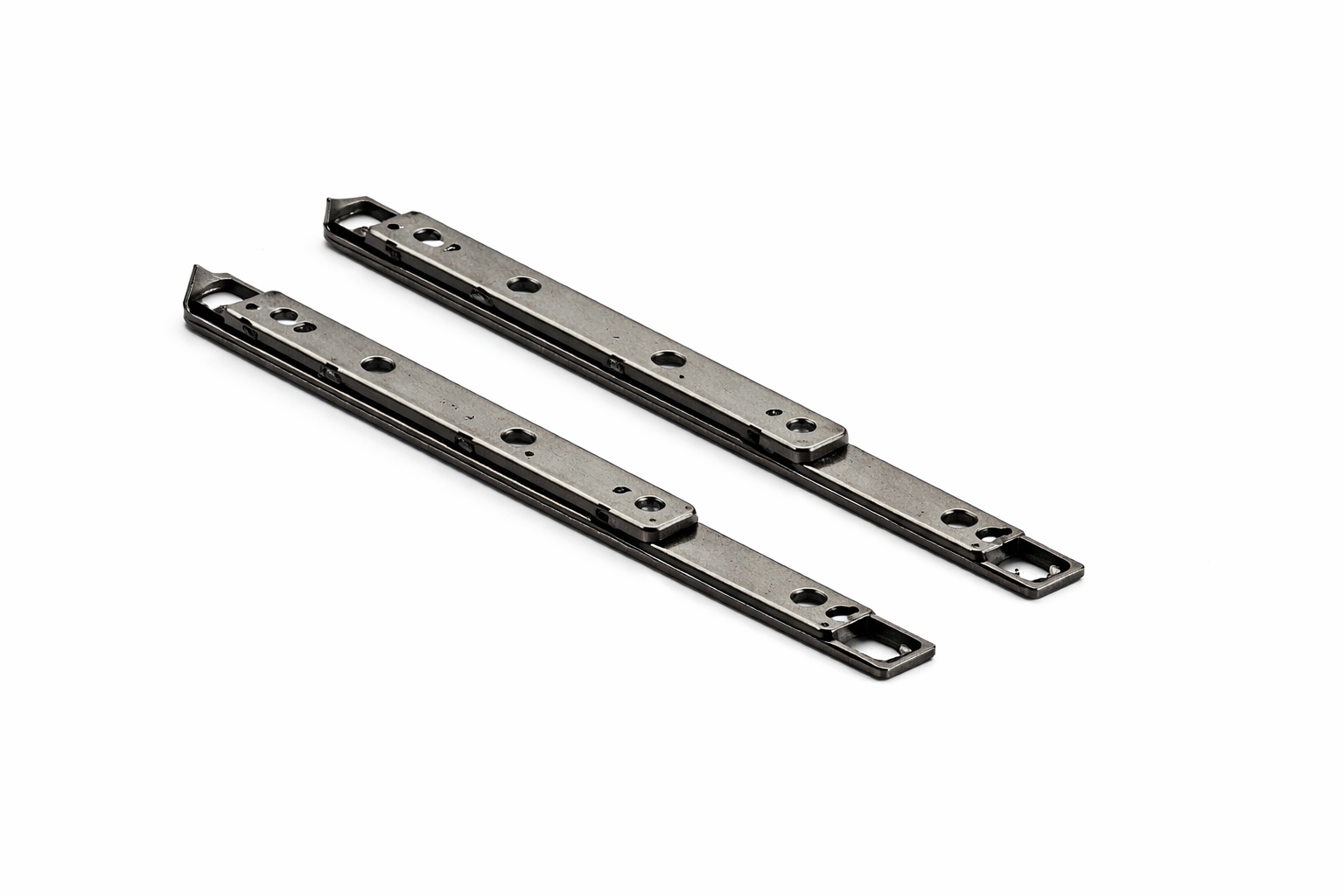

Giesse GS-HD Type TS – Top-Hung / Side-Hung Versatile Arm

Product manufacturer

Product Category

Hinges

Giesse Hinges GS-HD Type TS – Top-Hung / Side-Hung Versatile Arm

GS-HD Type TS arms are highly versatile friction arms suitable for both side-hung and top-hung windows with medium load capacity. These arms are self-positioning in the 15–20 mm sash channel, ensuring fast and precise installation. They are compatible with FRIZ limitation arms (Art. 02030K) for Euro Groove systems. Available in standard, L/R (Left & Right), and Euro Groove versions

Code: 08341, 08342, 08343, 08349, 08350
Bag Width: — mm
Sash Frame Distance: 16.5, GACS mm
Arm Length: 259, 412

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

More Products fromGiesse

GS-HD Side-hung Arm – Type A

Giesse

₹1,600

GS-HD Side-hung Arm – Type M

Giesse

₹1,350

GS-HD Side-hung Arm – Type C

Giesse

₹2,500

GS-HD Type C Plus Super – Self-Balancing Side-hung Arm

Giesse

₹3,100

GS-HD Type TS – Multi-Position Side & Top Hung Arm

Giesse

₹2,800

GS-HD Limitation Arm – Side Hung (Friz / With Lock)

Giesse

₹1,050

Services & Tools

Comprehensive services and tools to support your Hinges project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for Giesse GS-HD Type TS – Top-Hung / Side-Hung Versatile Arm

Property	Value	Unit
Code	08341, 08342, 08343, 08349, 08350	—
Bag Width	—	mm
Sash Frame Distance	16.5, GACS	mm
Arm Length	259, 412	—
Maximum Sash Opening angle	30, 50, 84, 90	°
Max Height	650, 800	mm
Max Width	1500	mm
Max Weight	50, 55, 100	Kg
Application	Side-hung windows, Top-hung windows	—
Type of One-Way Stroke	—	mm
Rod Length	—	mm
