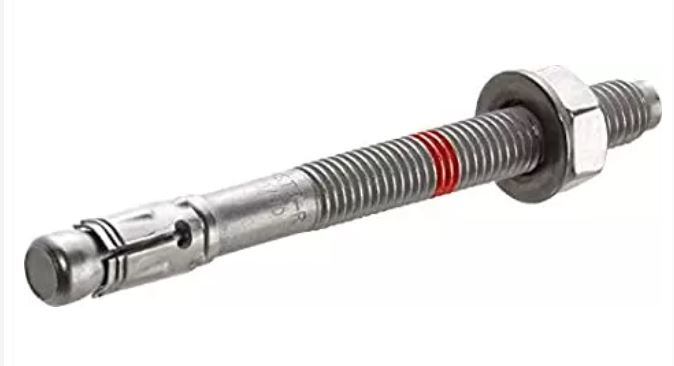

HSTM8x75 General Purpose Anchor Fasteners HILTI
High loading capacity Force-controlled expansion Suitable for tension zone Suitable for shock loading Fire prevention assessment Pre-assembled with nut and washer save time Cold formed
Product manufacturer
HILTIProduct Category
General Purpose Anchor Fasteners
HILTI General Purpose Anchor Fasteners HSTM8x75
High loading capacity Force-controlled expansion Suitable for tension zone Suitable for shock loading Fire prevention assessment Pre-assembled with nut and washer save time Cold formed
Loading specs...
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
Services & Tools
Comprehensive services and tools to support your General Purpose Anchor Fasteners project needs
No active Tools & Services currently
Product Comparison
Complete Technical Specifications for HILTI HSTM8x75
| Property | Value | Unit |
|---|---|---|
| Product Code | HST M8 X75 | mm |
| Features | High load capacity, Force-controlled expansion, Fire resistance, Suitable for shock loading, Suitable for tension zone, Pre-assembled with nut and washer, Cold formed | — |
| Application | Concrete, Cracked Concrete, Hard natural stone | — |
| Drill bit dia | 8 | mm |
| Anchor Length | 75 | mm |
| Thread Length ( HST) | 25 | mm |
| Width across nut flats | 13 | mm |
| Clearance hole diameter | 9 | mm |
| Min depth drill hole | 65 | mm |
| Effective embed depth | 46 | mm |
| Max fastenable thicknedd | 10 | mm |
| Min concrete thickness | 100 | mm |
| Drill bit | TE-CX-8 | — |
| Rec tightening torque | 25 | nm |
