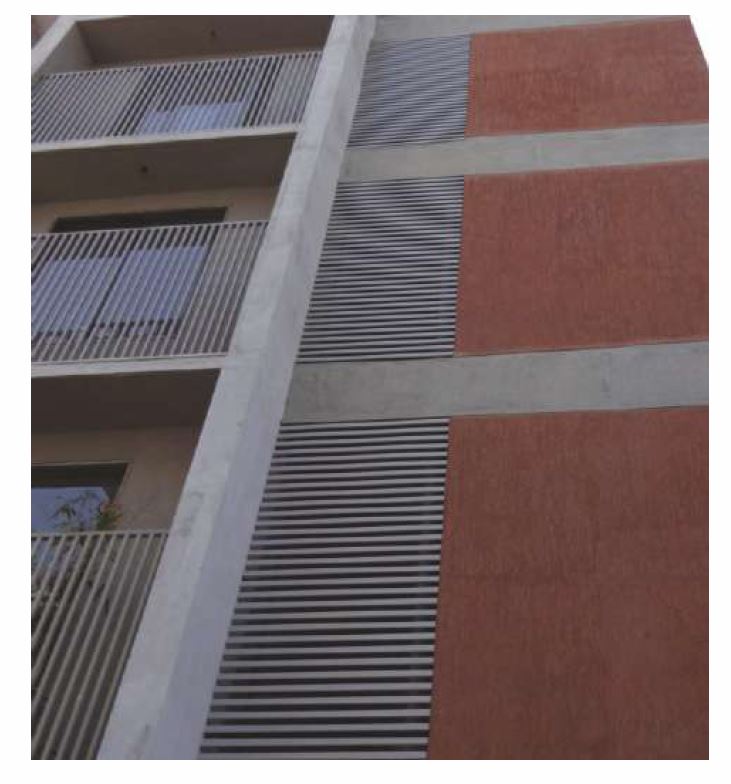

Metalium I 84R / 38R Metal Louver Cladding Panel Louvers METALIUM MULTI-TECH PRODUCTS - Louvers
84R / 38R metal louver panels are architectural linear façade cladding systems designed to create fluid horizontal or vertical lines on building elevations. These panels can be easily installed, removed, and replaced, allowing convenient access for maintenance. Manufactured from galvanized steel or aluminium with powder coating, they provide durable exterior cladding with modern aesthetics.
Product manufacturer
METALIUM MULTI-TECH PRODUCTS - LouversProduct Category
Louvers
METALIUM MULTI-TECH PRODUCTS - Louvers Louvers Metalium I 84R / 38R Metal Louver Cladding Panel
84R / 38R metal louver panels are architectural linear façade cladding systems designed to create fluid horizontal or vertical lines on building elevations. These panels can be easily installed, removed, and replaced, allowing convenient access for maintenance. Manufactured from galvanized steel or aluminium with powder coating, they provide durable exterior cladding with modern aesthetics.
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
More Products from
METALIUM MULTI-TECH PRODUCTS - Louvers
Metalium I Ceilings I U Shaped Screen Ceiling Panel
METALIUM MULTI-TECH PRODUCTS - Louvers
₹180
Metalium I Ceilings I Z Shaped Screen Ceiling Panel
METALIUM MULTI-TECH PRODUCTS - Louvers
₹190
Metalium I Ceilings I Open Cell Metal Ceiling
METALIUM MULTI-TECH PRODUCTS - Louvers
₹160
Metalium I Ceilings I Clip-In Metal Ceiling Tile
METALIUM MULTI-TECH PRODUCTS - Louvers
₹220
Metalium I Ceilings I Lay-In Metal Ceiling Tile
METALIUM MULTI-TECH PRODUCTS - Louvers
₹180
Metalium I Ceilings I Linear 84C / 184C Metal Ceiling Panel
METALIUM MULTI-TECH PRODUCTS - Louvers
₹220
Services & Tools
Comprehensive services and tools to support your Louvers project needs
Product Comparison
Complete Technical Specifications for METALIUM MULTI-TECH PRODUCTS - Louvers Metalium I 84R / 38R Metal Louver Cladding Panel
| Property | Value | Unit |
|---|---|---|
| Product Name | 84R, 38R Louver Panel | — |
| Panel Width | 38, 84 | mm |
| Panel Length | 1000, 2000, 3000 | mm |
| Panel Depth: | 15 | mm |
| Series Size | 38, 84 | mm |
| Material | Galvanized Steel, Aluminium | — |
| Thickness | 0.45, 0.5, 0.65, 0.71 | mm |
| Paint Finish | Powder Coated | — |
| Surface Options | Smooth, Matte, Wood Finish | — |
| Coating | Polyester Powder Coating, PVDF Coating | — |
| Installation | Concealed Carrier System | — |
| Features | Easy removable panels, linear façade design, ventilation | — |
| Applications | Building Facades, Parking Elevations, Ventilation Screens | — |
| Accessories | L Clip, L Angle, Tubular Stud Section, Screws | — |
| Installation Services Available | Gujarat Only | — |
| Cell Size | 32, 42 | mm |
| Grid Dimensions | 20, 45 | mm |
| Carrier Depth | 42 | mm |
| Carrier Module | 32, 42 | mm |
| Acoustic Option | — | — |
| Blade Width | 38, 84 | mm |
| Carrier Spacing | 32, 42 | mm |
