METALIUM MULTI-TECH PRODUCTS - Louvers Louvers Metalium I Facade Systems I V72 Half Oval Shaped Metal Panel

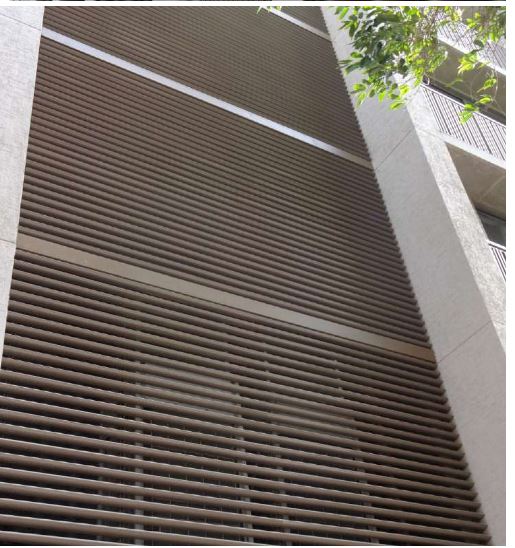

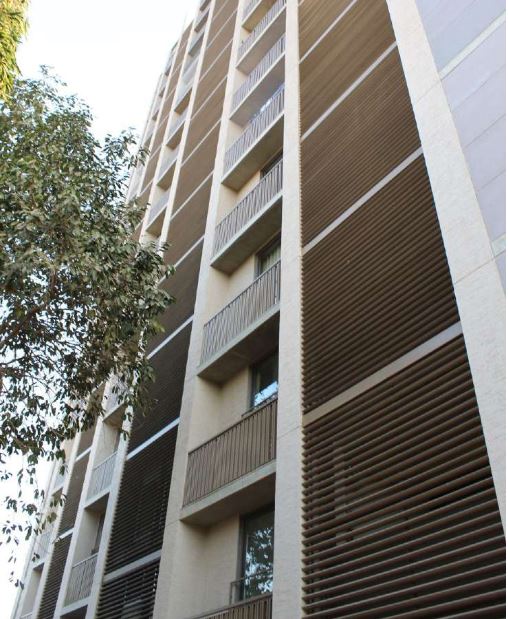

V72 Half Oval shaped panels are architectural metal louver systems designed for façade shading and ventilation. These aerodynamic profiles enhance building aesthetics while reducing solar heat gain. Manufactured from galvanized steel with durable exterior powder coating, the panels are suitable for façade elevations, duct coverings, parking structures, and architectural screening.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Louvers project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for METALIUM MULTI-TECH PRODUCTS - Louvers Metalium I Facade Systems I V72 Half Oval Shaped Metal Panel

PropertyValueUnit
Product NameV72 Half Oval Shaped Panel
Panel Width50mm
Panel LengthUp to 3000mm
Panel Depth:

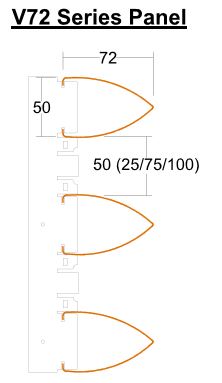

Series Size72 mm profilemm
MaterialGalvanized Steel, Aluminium
Thickness0.5mm
Paint FinishPowder Coated
Surface OptionsSmooth, Matte, Wood Finish
CoatingPolyester Powder Coating, PVDF Coating
InstallationCarrier Based Louver System
FeaturesAerodynamic shape, sun shading, ventilation
ApplicationsBuilding Facades, Parking Screens, Ventilation Screens, Architectural Louvers
AccessoriesL Clip, Tubular Stud Section, Back Cap, Screws
Installation Services Available
Cell Size
Grid Dimensions
Carrier Depth
Carrier Module
Acoustic Option
Blade Width50mm
Carrier Spacing25, 50, 75, 100mm
