METALIUM MULTI-TECH PRODUCTS - Louvers Louvers Metalium I U-Shaped Baffle Louver Panel

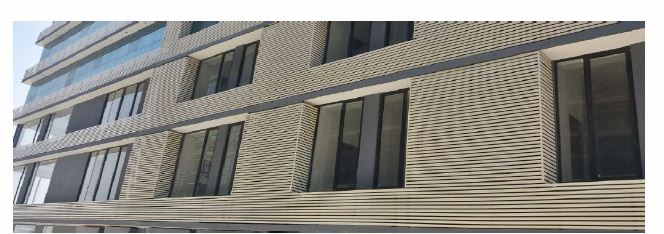

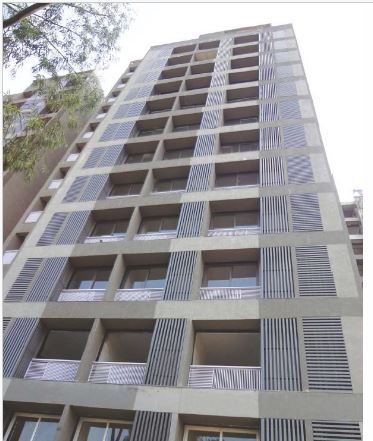

U-Shaped Baffle Louvers are architectural façade cladding systems designed for exterior screening, ventilation, and sun shading. These panels create strong vertical or horizontal façade lines while improving airflow and reducing solar heat gain. Manufactured from galvanized steel or aluminium with corrosion-resistant powder coating, they provide durable and aesthetic façade solutions for modern buildings.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Louvers project needs

No active Tools & Services currently

Product Comparison

Complete Technical Specifications for METALIUM MULTI-TECH PRODUCTS - Louvers Metalium I U-Shaped Baffle Louver Panel

PropertyValueUnit
Product NameU-Shaped Baffle Louver
Panel Width50, 125, 150mm
Panel Length1000, 2000, 3000mm
Panel Depth:50, 125, 150
Series Size50, 125, 150mm
MaterialGalvanized Steel, Aluminium
Thickness0.5, 0.65mm
Paint FinishPowder Coated
Surface OptionsSmooth, Matte, Wood Finish, Texture Finish
CoatingPolyester Powder Coating, PVDF Coating
InstallationCarrier Based System
FeaturesSun Shading, Ventilation, Durable Panels
ApplicationsBuilding Facades, Parking Screens, Ventilation Screens

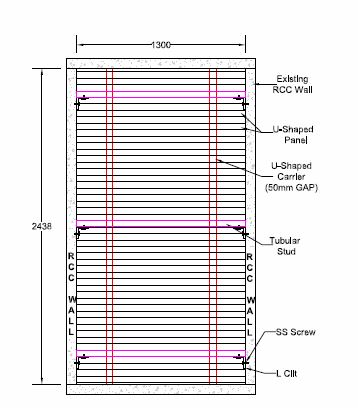

AccessoriesL Clip, Tubular Stud Section, End Cap, Back Cap, SS Screws
Installation Services AvailableGujarat Only
Cell Size50mm
Grid Dimensions50mm
Carrier Depth20mm
Carrier Module25, 50, 75, 100mm
Acoustic Option
Blade Width25, 50, 75, 100mm
Carrier Spacing25, 50, 75, 100mm

Product Documents & Downloads

No documents available for this product
