Product manufacturer

Padmawati Extrusion Pvt. Ltd

Product Category

Aluminum Extrusion

Padmawati Extrusion Pvt. Ltd Aluminum Extrusion Padmawati Extrusion Pvt. Ltd. I Rectangular Tubes

Rectangular aluminium tubes are hollow extruded profiles used for structural, architectural, fabrication, and general engineering applications. These tubes are available in a wide range of sizes with widths and heights approximately from 20 mm to 150 mm, wall thicknesses ranging from about 0.8 mm to 4.5 mm, and weights varying roughly from 0.16 kg/m to 3.14 kg/m depending on size and thickness. Manufactured from high-quality aluminium alloy, rectangular tubes offer excellent strength-to-weight ratio, corrosion resistance, dimensional accuracy, and smooth surface finish, making them suitable for frameworks, supports, railings, furniture, façade structures, and industrial applications.

Loading specs...

Suppliers & Dealers

0 dealers found

Applicators & Contractors

0 installers found

Services & Tools

Comprehensive services and tools to support your Aluminum Extrusion project needs

No active Tools & Services currently

Product Comparison

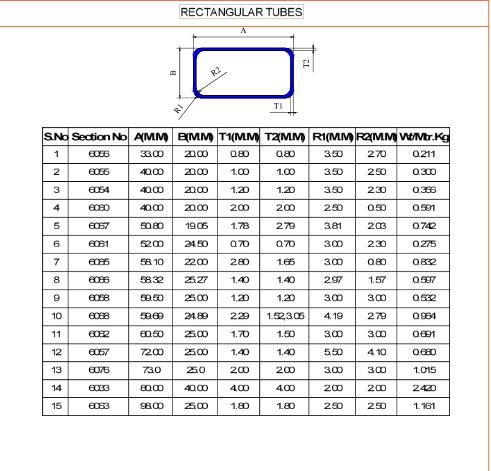

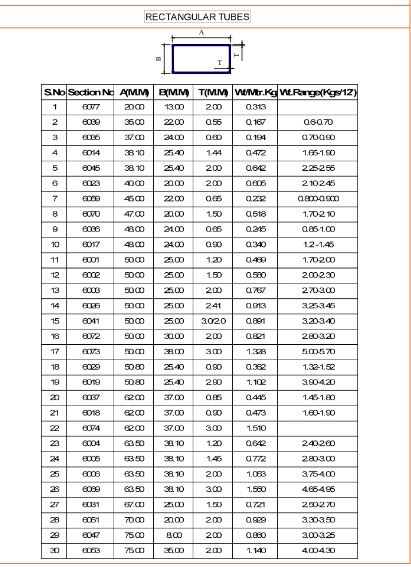

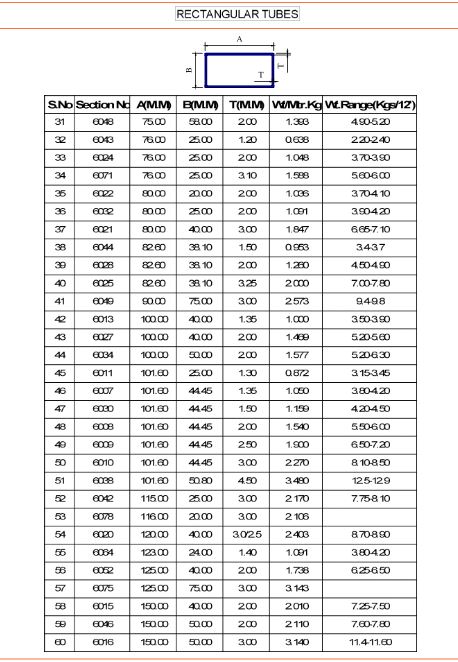

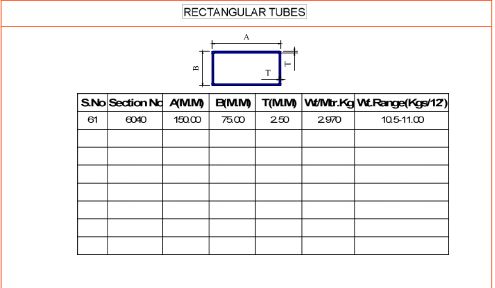

Complete Technical Specifications for Padmawati Extrusion Pvt. Ltd Padmawati Extrusion Pvt. Ltd. I Rectangular Tubes

PropertyValueUnit
Section Code6033, 6034, 6035, 6037, 6040, 6041, 6042, 6043, 6044, 6045, 6048, 6051, 6052, 6054, 6057, 6061, 6071, 6077, 6080, 6081, 6082, 6083, 6084, 6085, 6086, 6087, 6088, 6089, 6090, 6091
ApplicationStructural framing, façade support, fabrication, general engineering applications
IndustrialBuilding & Construction, Industrial Fabrication
ShapesRectangular hollow sections, box tubes
Size20 - 150mm
Thickness0.55 - 4.50mm
FinishMill finish, Anodized, Powder Coated
Weight Range0.167 - 3.480kg/m
