PR 02 BRC Glass Railing PRISM

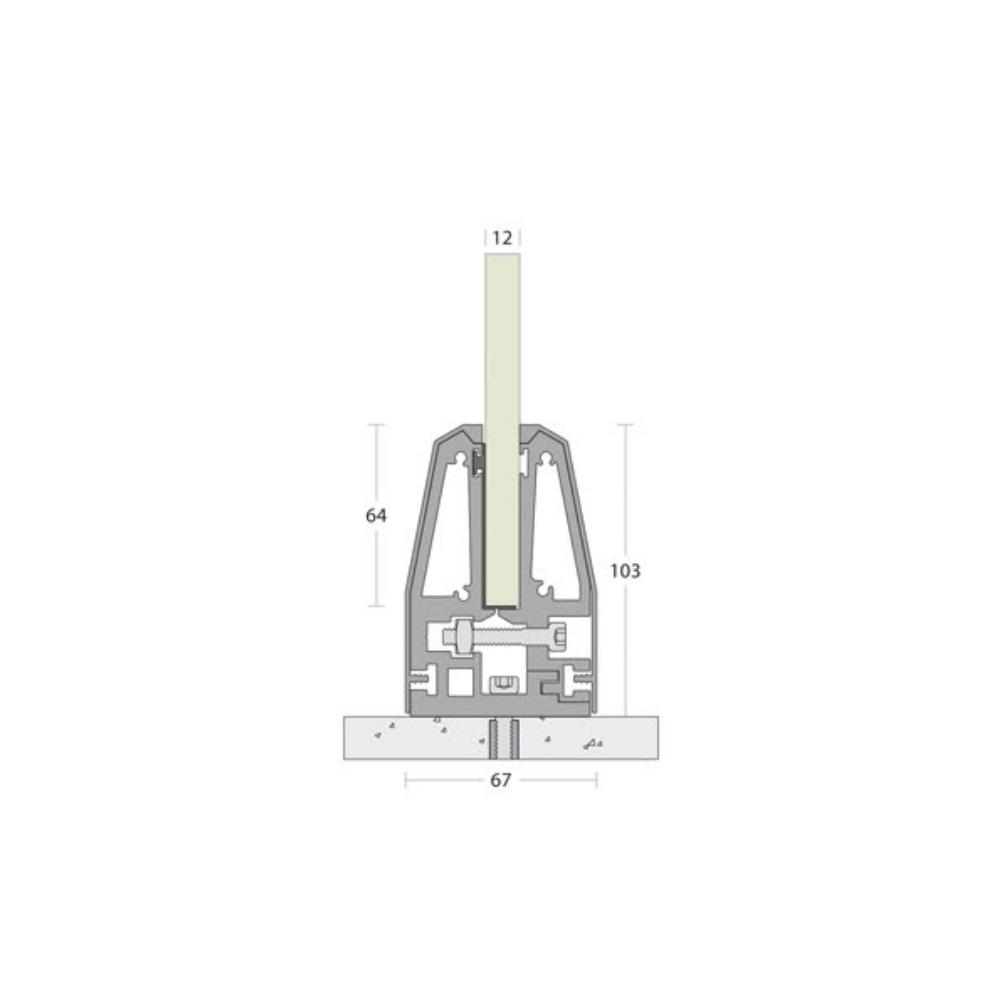

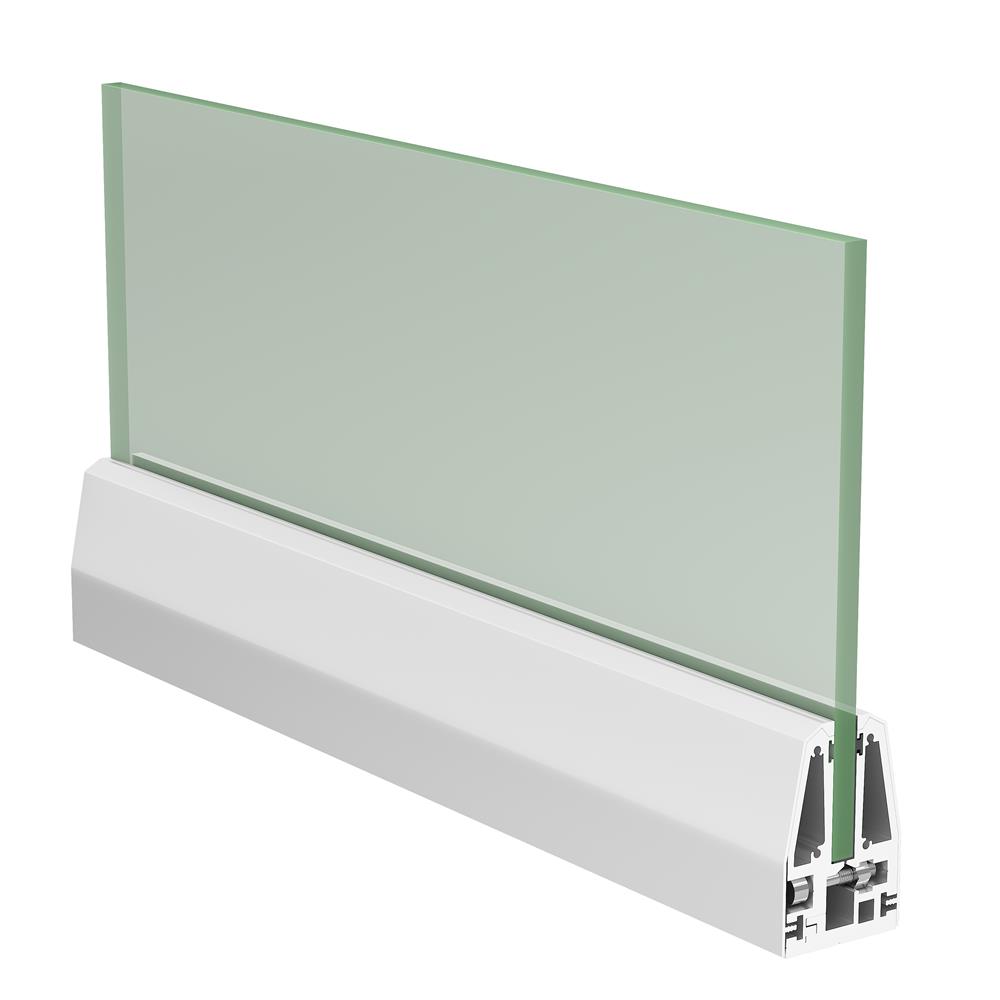

Prism Rail PR 02 BRC railing system is top mounted system. The Brackets are anchored with the bolts. The brackets are covered with cover profile in anodize, wooden and any other shade of powder-coating. The system is compatible with glass of 12mm thickness and 900mm height.
Product manufacturer
PRISMProduct Category
Glass Railing
PRISM Glass Railing PR 02 BRC
Prism Rail PR 02 BRC railing system is top mounted system. The Brackets are anchored with the bolts. The brackets are covered with cover profile in anodize, wooden and any other shade of powder-coating. The system is compatible with glass of 12mm thickness and 900mm height.
Technical Specifications Summary
- Product Name
- PR 02 BRC
- Material Grade
- Aluminium 6063
- Application
- Bracket with Cover System
- Dimensions
- Height 900 mm
- Glass Thickness
- 12 mm
- Mounting Type
- Top
- Surface Finish
- Anodize, Wooden, Powder Coating
More Products from
PRISM
Services & Tools
Comprehensive services and tools to support your Glass Railing project needs
Complete Technical Specifications for PRISM PR 02 BRC
| Property | Value | Unit |
|---|---|---|
| Product Name | PR 02 BRC | — |
| Material Grade | Aluminium 6063 | — |
| Application | Bracket with Cover System | — |
| Dimensions | Height 900 | mm |
| Glass Thickness | 12 | mm |
| Mounting Type | Top | — |
| Surface Finish | Anodize, Wooden, Powder Coating | — |
| Warranty | — | — |
Product Documents & Downloads
No documents available for this product
Quality Assurance
We follow 4-point checks at our factory for quality assurance of Glass Railing
Raw materials check
As soon as the raw materials come into production units, they undergo test at our labs to get their properties checked, passing which they go to the store.
Product Check
The product thus manufactured, undergoes the most stringent test according to global standards, passing which it qualifies for dispatch.
Check at the manufacturing stage
At different stages of manufacturing, tests are done to validate if the purpose of a particular stage has been served or not. For e.g at the pre-treatment stage it is checked whether degreasing or deoxidizing of the aluminium coil has properly taken place or not.
Post production check
Before being dispatched, thorough visual inspection is done to check product tolerances and any other kind of manufacturing defect.
