Technoform I Low Lambda PA 66 GF25 I 24 mm Thermal Break / Insulating Profiles technoform
High mechanical strength, Dry impact resistant, Excellent dimensional stability, Low thermal conductivity, UV resistant, Weather resistant, Glass fiber reinforced (25% GF), Suitable for high-performance façade systems, Recycled material option available, Long service life, Precise extrusion tolerance
Product manufacturer
technoformProduct Category
Thermal Break / Insulating Profiles
technoform Thermal Break / Insulating Profiles Technoform I Low Lambda PA 66 GF25 I 24 mm
High mechanical strength, Dry impact resistant, Excellent dimensional stability, Low thermal conductivity, UV resistant, Weather resistant, Glass fiber reinforced (25% GF), Suitable for high-performance façade systems, Recycled material option available, Long service life, Precise extrusion tolerance
Suppliers & Dealers
0 dealers found
Applicators & Contractors
0 installers found
More Products from
technoform
Technoform I Low Lambda PA 66 GF25 I 12 mm
technoform
₹120
Technoform I Low Lambda PA 66 GF25 I 16 mm
technoform
₹250
Technoform I Low Lambda PA 66 GF25 I 20 mm
technoform
₹250
Technoform I Low Lambda PA 66 GF25 I 21 mm
technoform
₹150
Technoform I Low Lambda PA 66 GF25 I 22 mm
technoform
₹160
Technoform I Low Lambda PA 66 GF25 I 23 mm
technoform
₹170
Services & Tools
Comprehensive services and tools to support your Thermal Break / Insulating Profiles project needs
Product Comparison
Complete Technical Specifications for technoform Technoform I Low Lambda PA 66 GF25 I 24 mm
| Property | Value | Unit |
|---|---|---|
| Product Name | Polyamide Thermal Break Profile – 24 mm | — |

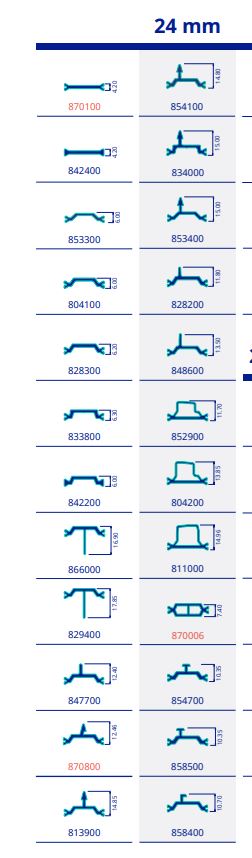

| Product Code | 870100, 854100, 842400, 834000, 853300, 853400, 804100, 828200, 828300, 848600, 833800, 852900, 842200, 804200, 866000, 811000, 829400, 870006, 847700, 854700, 870800, 858500, 813900, 858400, 850800, 845600, 847600, 829200 | — |
| Material | PA66 GF25 (Polyamide 6.6 reinforced with 25% Glass Fiber) | — |
| Sizes | 24 - 17.00 | mm |
| Application | Thermal insulation barrier for Aluminium Windows, Doors & Curtain Wall Systems | — |
| Standard | ASTM C518, EN 14024 | — |
| Features | High mechanical strength, Dry impact resistant, Excellent dimensional stability, Low thermal conductivity, UV resistant, Weather resistant, Glass fiber reinforced (25% GF), Suitable for high-performance façade systems, Recycled material option available, Long service life, Precise extrusion tolerance | — |
| Shape | Extruded multi-cavity thermal break profile | — |
| Weight | 0.15 - 0.35 | kg/m |
Product Documents & Downloads
No documents available for this product
